High Performance Cooling

Performance data tested with Vortex 360 on AMD Ryzen 5600x

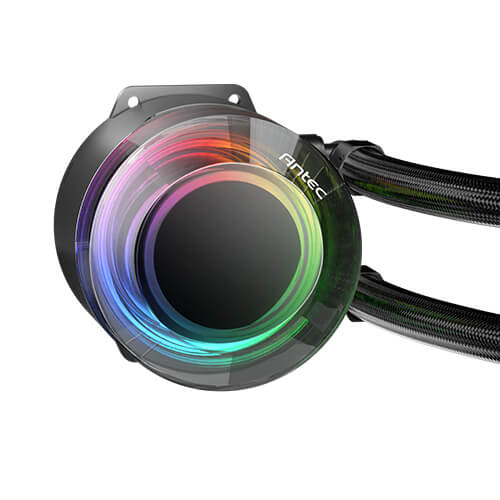

Suspended Spiral
Pump Head Design

The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

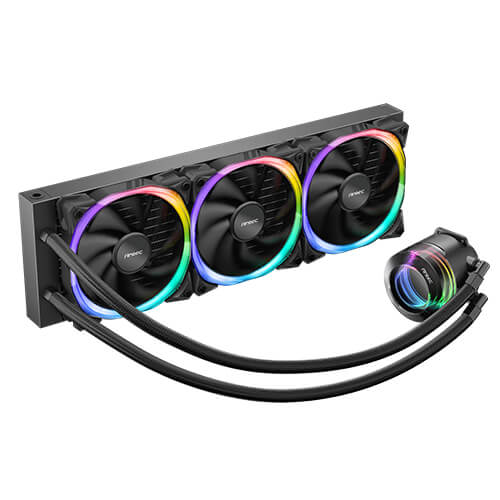

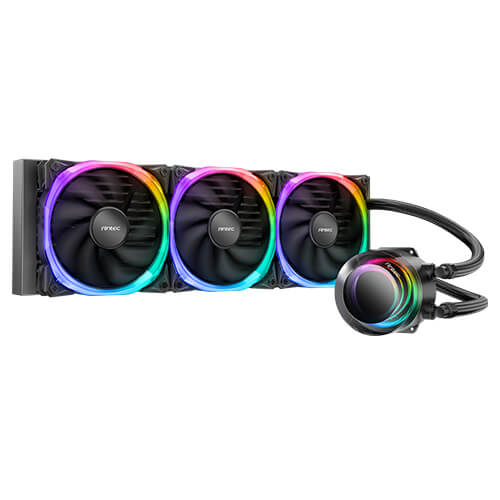

The Epoch-Making All in One ARGB CPU Liquid Cooler

SPECIFICATIONS

Radiator

Radiator Dimensions	397 x 120 x 27 mm
Radiator Material	Aluminum

Tdp Number

Vortex360 280W

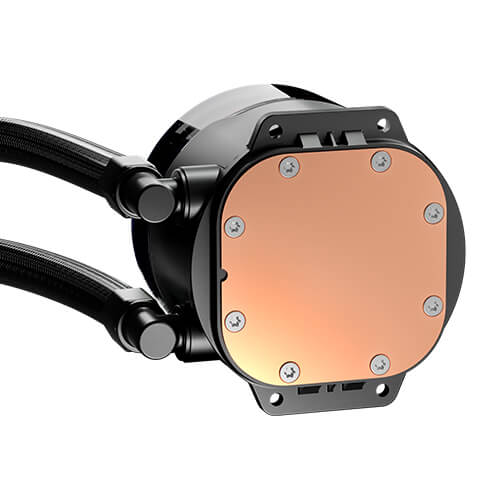

Pump

Dimensions	￠67 x 48.5 mm
Rating Voltage	DC 12 V
Minimum Startup Voltage	≥ 5.0 V
Fan Speed	2800±10% RPM
Rated Current	0.25±20% A
Consumed Power	3.0 W
Flow rate	≥ 1300 mL/min
Water Pressure	1.4M
Operation Temperature	-10°C ~ +60°C
Noise Level	≤ 28 dB(A)
Lifespan	40,000 hours
Connector	PUMP: 3-pin \| LED: 3-pin

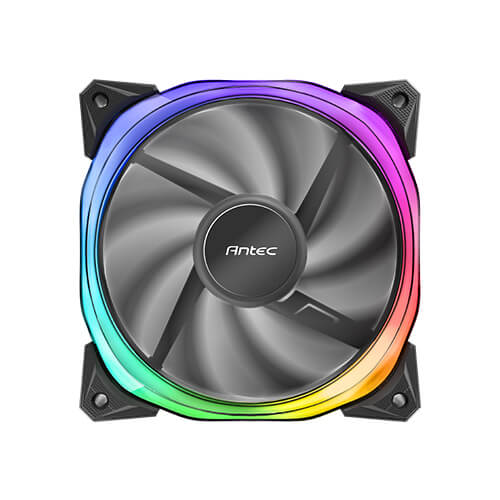

Fan

Model Name	Fusion 120 ARGB fan (AH12012FM1)
Fan Type	PWM Fan
Dimensions	120 x 120 x 25 mm
Bearing Type	Hydraulic Bearing
LED Type	Addressable RGB
Fan Speed	600±200 ~ 2000±10% RPM
Airflow	57.93 CFM (max.)
Air Pressure	2.11 mmH₂O (max.)
Fan Noise Level	31.24 dB(A)
Lifespan	40,000 hours
Connector	FAN: 4-pin PWM \| LED: 3-pin
Rated Voltage	FAN: DC 12 V \| LED: DC 5 V
Operation Voltage	FAN: DC 6.0-13.8 V \| LED: DC 4.5-5.5 V
Rated Current	FAN : ≤ 0.21 A \| LED : ≤ 0.58 A
Socket Compatibility CPU	Intel : LGA 115X / 1200 / 1700 / 20XX AMD : AM3 / AM4 / AM5 / TR4
Warranty	3 years
