| Chip Series |
GeForce® RTX 3060 |
| Product Series |
iGame Series |
| GPU Code Name |
GA106 |
| Manufacturing Process |
8nm |
| CUDA Cores |
3584 |
| Core Clock |
Base:1320Mhz; Boost:1777Mhz |
| One-Key OC |
Base:1320Mhz; Boost:1867Mhz |
| Memory Clock |
15Gbps |
| Memory Size |
12GB |
| Memory Bus Width |
192bit |
| Memory Type |
GDDR6 |
| Memory Bandwidth |
360GB/s |
| Power Connector |
2*8Pin |
| Power Supply |
7+2 |
| TDP |
220W |

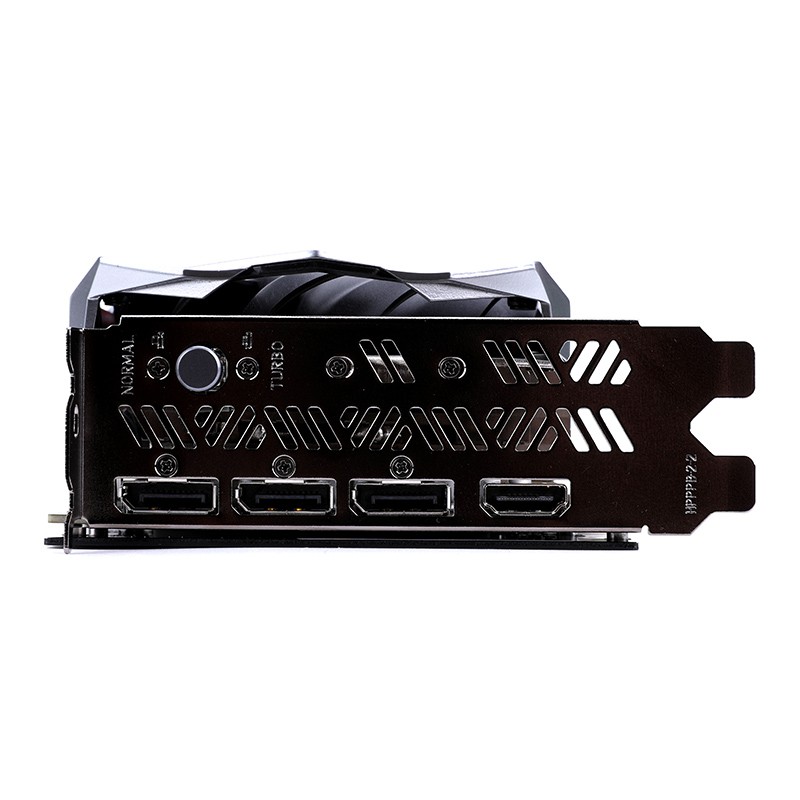

| Display Ports |
3DP+HDMI |
| Fans Type |
FAN |
| Heat Pipe Number/Spec |
4*Φ8 |
| Auto Stop Technology |
Y |
| Power Suggest |
550W |
| DirectX |
DirectX 12 Ultimate/OpenGL4.6 |
| NV technology Support |
NVIDIA DLSS, NVIDIA G-SYNC, 2nd Gen Ray Tracing Cores |
| Slot Number |
over 2 slot |
| Product Size |
315.5*131*53mm |
| Product Weight |
1.8KG(N.W) |
| Accessories |
Warranty Card,Manual |
